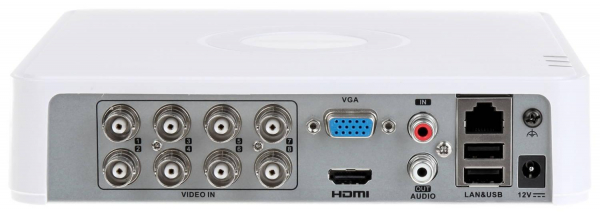

DVR Turbo HD / AHD Hikvision DS-7108HQHI-K1(S), 8 canale, 4 MP, audio prin coaxial

DS-7108HQHI-K1 este un DVR cu 8 canale video avand compresie video H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264. Rezolutia 4 MP este suportata de camerele TurboHD si AHD, separat se pot atasa 4 camere IP (pana la un maxim de 12 camere IP) cu rezolutie de pana la 6 MP/ camera. DS-7108HQHI-K1 are o rezolutie de redcare 1080p si e prevazut cu 2 porturi USB 2.0. DVR-ul e compatibil cu protocolul Coaxitron (HIKVISION-C). Capacitatea de stocare a DVR-ului este de 1 × SATA HDD de 6 TB. Temperatura de functionare porneste de la -10°C si ajunge pana la +55°C. Cablarea la calitate de 1080p (Full HD) se poate efectua pana in 800 metri si pentru o calitate de 720p (HD) la o distanta de 1200 metri. *Atentie: audio prin coaxial functioneaza doar cu camerele Hikvision! Specificatii Audio/Video Tehnologii suportate: HDTVI / AHD / CVI / CVBS / Intrare video IP Intrari video analogice: 8 canale, intrare BNC Intrari video IP: 4 canale (pana la 12 canale) pana la 6MP per camera Iesiri video: 1 canal, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Rezolutie redare: VGA out: 1 port - 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI out: 1 port - 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; Comunicare bidirectionala: 1 × canal RCA (Utilizand primul canal de intrare audio) Inregistrare Rezolutie inregistrare: 4 MP lite / 3 MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF; Cadre/Secunda: Main stream: Cand modul 1080p Lite nu e activat: 4 MP stream: 4 MP lite@15fps; 1080p lite / 720p / WD1 / 4CIF / VGA / CIF@25fps (P) / 30fps (N) 3 MP stream: 3 MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF@15fps 1080p stream: 1080p / 720p@15fps; VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N) 720p stream: 720p / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N) Cand modul 1080p Lite este activat: 4 MP lite / 3 MP@15fps; 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N) Sub-stream: WD1 / 4CIF@12fps; CIF@25fps (P) / 30fps (N) Tipuri de camere suportate: HDTVI input: 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 *Intrarea de 3 MP este valabil doar pentru canalul 1/2 - DS-7108HQHI-K1. AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 HDCVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Compresie video: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Compresie audio: G.711u Retea Interfata: 1 × Port RJ45 (10/100M) Protocol retea: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Utilizatori simultani: 64 Stocare HDD: 1 × porturi SATA (pana la 6TB) Interfete auxiliare USB: 2 × porturi USB 2.0 Functii Speciale Mod Backup: USB, Retea (Dropbox/Google Drive/Microsoft OneDrive) Caracteristici generale Temperatura de functionare: de la -10°C pana la +55°C Umiditate: de la 10% pana la 90% Alimentare: 12 VDC Consum: ≤ 12 W Dimensiune: 200 × 200 × 45 mm Greutate: ≤ 1 kg
